Brazos Super-Tuned Magazine

Brazos Price: From $150.00 to $200.00
Manufacturer: Brazos Custom
: 0

Product Options

Caliber:
Length:
Basepad:

Product Options

* denotes required field

Would you like us to modify the follower so that your slide does not lock back? (See below for more info)*

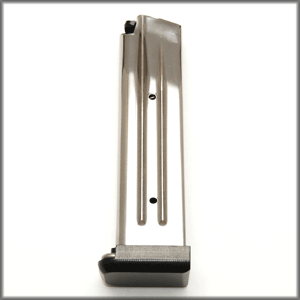

The Brazos Super-Tuned magazine uses all premium parts.  It starts as an STI tube and a Grams spring/follower kit.  Then you select either a Dawson or Taran Tactical basepad.  These parts are assembled and tuned for reliability and maximum capacity.

  • Tube dimensions (inside and out) are set for maximum feeding reliability.

  • Lips of the tube are set to optimum specifications and polished.

  • All sharp edges are rolled.

  • The tube is polished both inside and out to a high gloss, slick finish.

  • Magazines are tuned to fit the U.S.P.S.A. gauge.  The 140mm mags will hold 20+1 rounds of 40 cal or 21+1 rounds of 9mm/38 Super, and the 170 mag will hold 28+1 rounds of 9mm/38 Super.

Maximum capacity is achieved and is the same with any of the available basepads.  Which basepad is a matter of personal choice.  Both the Dawson and Taran Tactical basepads are made of aluminum.  Some prefer the lower profile that the Taran Tactial pads provide, while others prefer the tool-free on/off feature of the Dawson pads.  The 9mm Super Tuned magazines also include a stainless steel Hardy Spacer and are available only with the Dawson baseapds.  For 38 Super, best results are achieved when ammo is loaded 1.235" or shorter.

If your gun is set up to not lock back, we can modify the follower (without compromising capacity) so that your slide does not lock back.  Please indicate your preference above.  If you experience problems with premature slide lock back, please note that the pawl of your slide stop may need to be adjusted.  Refer to the link below on setting up your gun for slide lockback or not.



Additional Information

Click here for more information on slide lock back or not.
